Selecting the right upfit starts with engineering, not appearance. A well-planned custom diesel truck upfitting in Cheyenne, WY, should match the truck’s job, maintain safety, respect weight ratings, and consider how added equipment affects axle loads, center of gravity, braking, handling, and cargo control. OEM emphasizes safety, reliability, and compliance, while federal regulations highlight that loading and securement affect safe operation.
That principle matters because upfitting impacts more than storage. Service bodies, flatbeds, hitches, cranes, generators, tanks, and racks affect curb weight, payload, rear axle load, and handling. Buyers review ratings, work cycle, loading, and conditions before selecting equipment.
Begin With The Truck’s Actual Duty Cycle
The best diesel work truck upfitting starts by understanding the vehicle’s daily workload. Major manufacturers offer technical tools for equipment selection, sizing, modifications, and planning. Vocational fit should be carefully planned, not improvised.
Questions To Answer Before Selecting Equipment
- What does the truck carry every day, such as tools, parts, fluids, and personnel?
- Does the truck tow regularly? If so, what type of trailer does it pull?
- Is the load positioned high, low, forward, or primarily behind the rear axle?
- Does the truck require locked compartments, open-deck access, or both?
- Will the truck spend more time on pavement, in yards, on job sites, or on uneven rural routes?
- Does the equipment require auxiliary power, lighting, air, or hydraulic support?
These questions guide decision-making order. Body style, hitch, compartment layout, electrical additions, and suspension should depend on work needs, not predetermined. This follows OEM guidance, viewing upfitting as a technical process affecting the whole vehicle, not just the cargo area.
Start With Ratings Before You Add Equipment
Vehicle ratings are essential for making informed upfit choices. The Gross Vehicle Weight Rating (GVWR) is the maximum loaded weight specified by the manufacturer for a vehicle. GVWR shows the safest loaded weight for the vehicle.
In practical terms, your build must account for the truck itself, occupants, equipment, tools, cargo, and trailer-related vertical load. Manufacturer trailering guidance emphasizes the importance of payload, rear axle ratings, and combined vehicle-and-trailer limits, not just the tow figure. The driver-side door-jamb label typically shows GVWR, GCWR, rear GAWR, payload, tongue weight, and curb weight. GCWR is the maximum weight of the towing vehicle, loaded trailer, cargo, and passengers.
OEM upfitter and towing material stress that completed vehicles, along with occupants and payload, should not exceed the original GVWR, and GAWRs, GVWRs, and GCWRs shouldn’t be exceeded. Ram’s guidance emphasizes keeping tongue weight within manufacturer recommendations and hardware limits.
Weight Items That Must Be Counted In The Plan
- Body or platform weight
- Toolboxes and compartment packages
- Compressors, welders, pumps, or generators
- Fuel transfer tanks or auxiliary systems
- Ladder racks, headache racks, and accessories
- Hitch hardware and trailer tongue or kingpin load
- Drivers, passengers, and everyday cargo
A careful estimate helps avoid costly errors. It's not sufficient to verify that a truck can physically handle an upfit; the final vehicle must also stay within safe and legal weight limits after being fully equipped and in use.
Choose The Body Style That Matches The Industry
Construction And Field Service

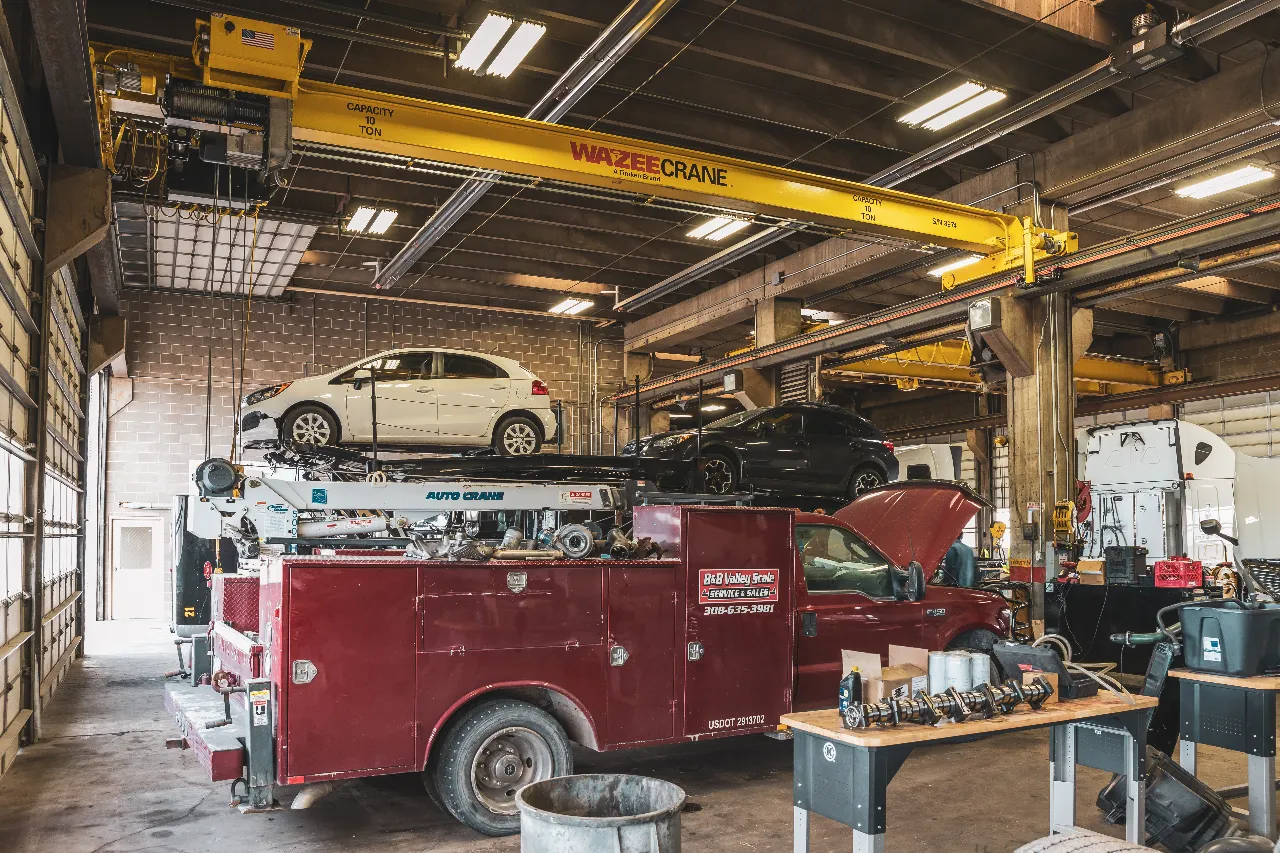

For contractors and field service teams, the focus is on organization, security, and quick access. Service body installation offers a practical solution by compartmentalizing parts, tools, and consumables. Engineers should consider the impact of payload, axle distribution, and side storage on capacity. Significant weight changes can affect brake performance, axle loads, spring loads, handling, and steering.
A formal build centered on contractors might consist of the following elements:
- Lockable side compartments
- Ladder or conduit racks
- Interior and exterior task lighting
- Backup alarms or cameras
- Step systems for safer access
- Mounting provisions for compressors or generators
When set up correctly, these work truck accessories can enhance workflow without compromising the truck’s structural integrity or operational stability. The key is ensuring that equipment is arranged to facilitate access and securement, while keeping the finished vehicle within its rated capacity.
Agriculture And Ranch Operations
Agricultural use demands flexibility over compartmentalization. A truck might carry fencing in the morning, tow equipment later, and require clear deck access for side loading. Flatbed upfitting often suits these needs better than a conventional pickup box due to its broader load access and adaptable cargo placement.
Open-deck versatility doesn't remove the need for careful loading. Federal rules require cargo to be secured with structures, dunnage, shoring bars, tiedowns, or a combination. Items that may roll must also be restrained to prevent movement.
A formal, agriculture-focused setup might include:
- Flatbed with integrated tie-down points
- Underbody toolboxes
- Headache rack protection
- Receiver or gooseneck prep
- Stake pockets or removable side restraints
- Task lighting for early or late operation
This build style is most effective when deck hardware, load placement, and tiedown strategy are integrated into the upfit from the start, rather than considered after the fact.
Towing And Equipment Hauling
If your truck hauls trailers, ensure your towing setup is right. Manufacturer guidance stresses proper hitch and electrical connections for vehicle handling, corners, and braking. Fifth-wheel kingpin loads are higher than conventional trailer tongues and should be considered against payload and rear axle ratings. Additional equipment and passengers also reduce the available payload for the trailer hitch.
Therefore, trucks designed for towing should be planned with the following in mind:
- Hitch type and rating
- Mounting location relative to the axle
- Rear axle capacity
- Payload remaining after the upfit is installed
- Trailer brake and lighting compatibility
- Bed access for coupling and inspection
A towing-focused build that overlooks these relationships can quickly deplete the truck’s practical capacity, even if the official tow rating seems generous.
Fleet Applications
For multi-unit operations, fleet truck customization should focus on repeatability. Standardized layouts, lighting, compartments, and hitches ease driver transitions, parts stocking, and maintenance. While operational, this aligns with OEM views of upfits as engineered systems that maintain serviceability and vehicle integrity across the fleet.
Consider Weight Distribution, Braking, And Handling Early
Weight distribution is often overlooked in custom diesel truck upfitting in Cheyenne, WY. GM guidance warns that weight variations affect safety, handling, and compliance. Loaded vehicles with accessories must stay within GVWR and axle ratings.
Suspension upgrades and brake support should be considered as part of the body or equipment package. Rear weight affects ride height, spring demand, balance, and braking. Federal standards regulate brake conditions, listing failures such as lack of action, broken parts, loose components, air leaks, and excessive pushrod stroke.
The center of gravity warrants careful consideration. The FMCSA states that loaded vehicles with a high center of gravity can rollover when lateral acceleration exceeds 0.35 g. This emphasizes the importance of cargo placement and restraint on working trucks. Equipment mounted high or positioned too far back can cause handling issues that are disproportionate to the weight involved.
Design Storage Around Securement, Not Just Space
A professional upfit should ensure cargo is secured as effectively as it is stored. Federal securement regulations mandate that devices and systems used to secure cargo meet performance standards, that structures and components are in good working order, and that cargo is restrained to prevent shifting or falling from the vehicle.
That requirement has practical implications for upfit design.
- Open decks should include strategically placed tie-downs.
- Compartments should keep dense items low and contained.
- Racks should prevent long items from shifting during braking or cornering.
- Rolling items should be blocked, chocked, or otherwise secured.
- Storage should reduce loose cargo in the bed or on the platform.
This is also where driveline protection plays a crucial role. Improperly managed cargo movement and uneven weight distribution not only impact compliance but also put stress on the chassis, axles, tires, suspension, and the entire vehicle when loaded. Although the truck may still operate, it does so with reduced reserve capacity and increased wear.
Preserve Serviceability And Compliance
An upfit should not hinder routine inspections or maintenance. OEM best-practice materials aim to maintain safety, reliability, and design integrity, including service access and integration. For example, Ram’s Body Builder’s Guide provides vehicle-specific details, modification instructions, technical info, and wiring guidance for installers.
This is especially crucial when a modification alters the entire vehicle's original setup. As an example, GM's guidance for upfitters on removing the pickup box warns that those modifying fully certified trucks may be responsible for maintaining the vehicle's compliance with safety and emissions standards. Essentially, an upfit is more than just adding accessories; it can have engineering and regulatory implications.
Therefore, preventive maintenance for upfitted trucks should be incorporated into the ownership plan from the very first day of operation. The truck must be designed to be easy to inspect, weigh, and maintain with the upfit installed.
Plan The Post-Upfit Maintenance Routine
Once the truck is in service, the owner should verify performance instead of assuming it. Ford recommends weighing the loaded vehicle and trailer to ensure weight limits aren't exceeded. Federal standards emphasize checking brake condition, and securement rules require tiedowns and cargo restraint elements to be in proper working order.
A disciplined post-fit inspection routine should include:
- Loaded weight verification
- Front and rear axle weight review
- Hitch and mounting hardware inspection
- Brake performance checks
- Tire wear monitoring
- Fastener retorque schedules
- Lighting and electrical system checks
- Cargo restraint inspection
That process protects both uptime and resale value. More importantly, it confirms that the chosen configuration still suits the job once the truck begins operating under real-world conditions.
Final Thoughts
The right upfit serves the industry without compromising the truck. A successful diesel truck project in Cheyenne, WY, starts with duty cycle analysis, then reviews GVWR, GAWR, payload, and towing, ending with a build that ensures securement, handling, braking, serviceability, and maintenance.
Seeking out professional upfitting services makes your truck safer, more durable, and more productive. For a new build, contact Patriot Diesel & Automotive in Cheyenne to explore options and services.
